Velit 2000R Controller Replacement

WARING: Please disconnect all power supplies and leave the unit standing for more than 10 minutes before operation.

1. Remove Housing

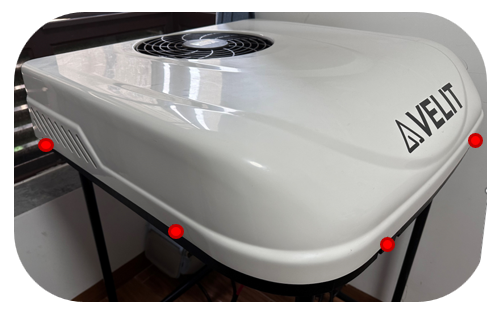

There are two screws on each side of the housing, for a total of eight.

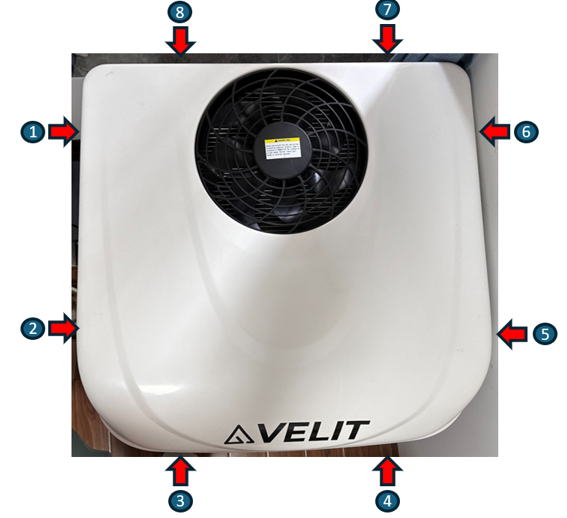

8 screw locations

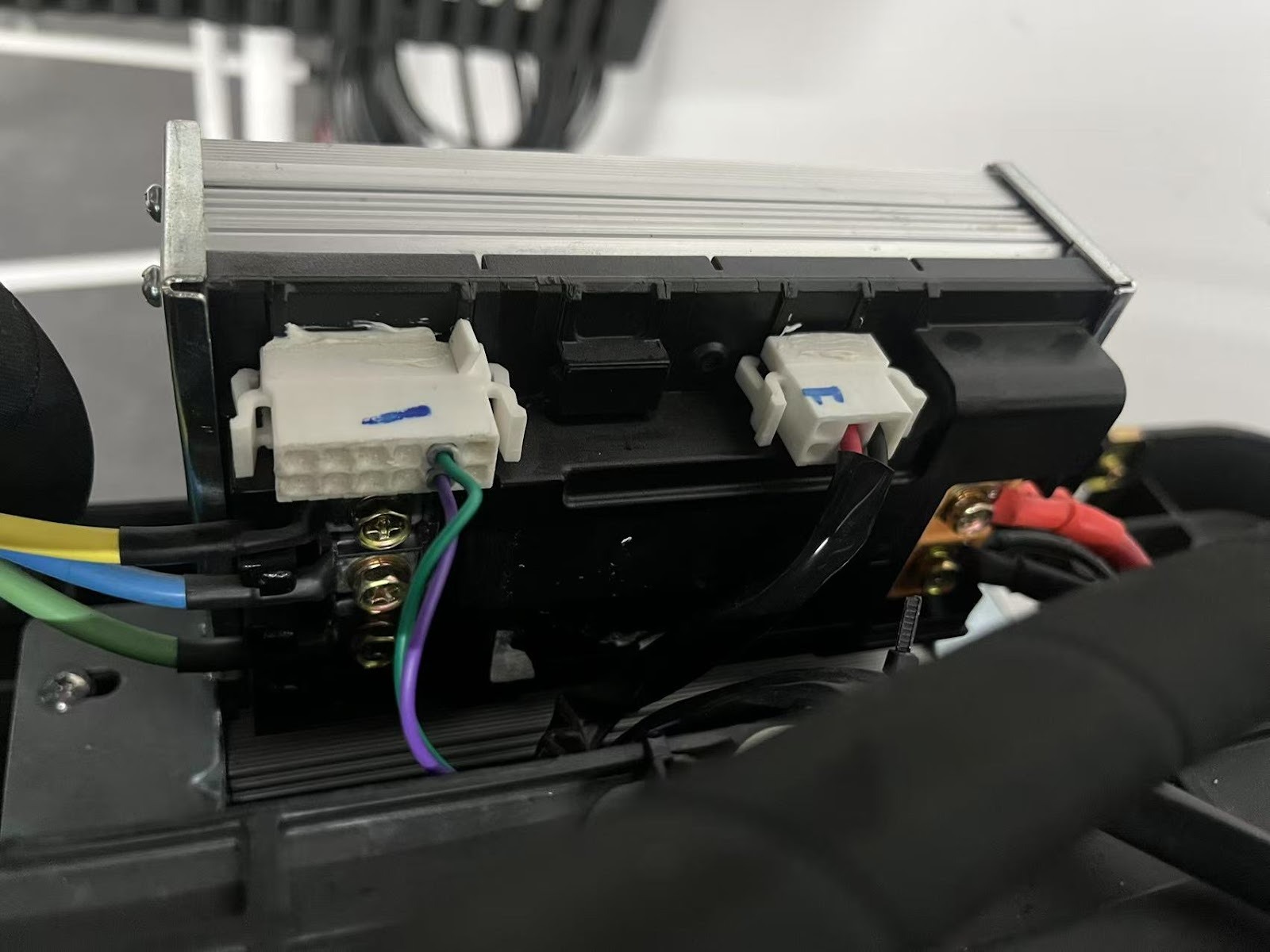

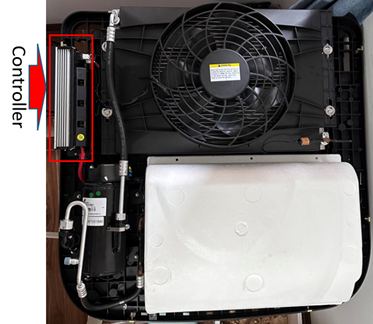

Controller Location

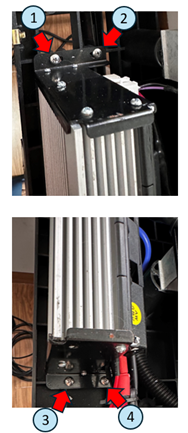

2. Remove controller tightening Screws

Remove four fastening screws

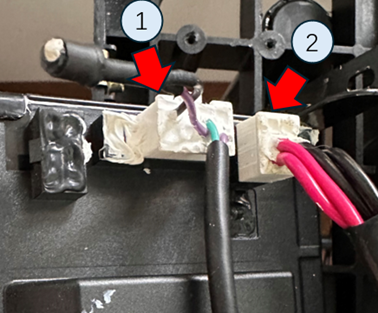

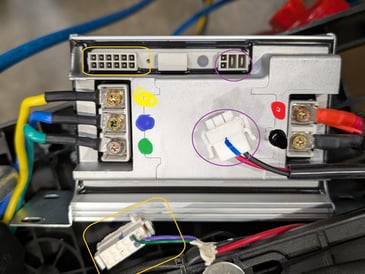

3. Unplug the control signal cable

Two Plugs need to be unplugged

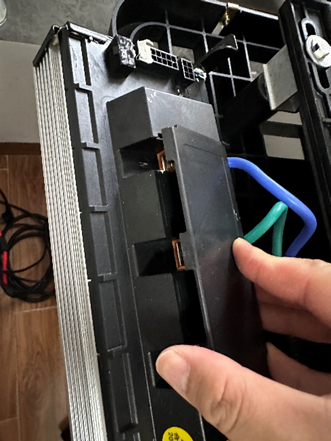

4. Open the wire protection cover (break it off)

Remove protection cover

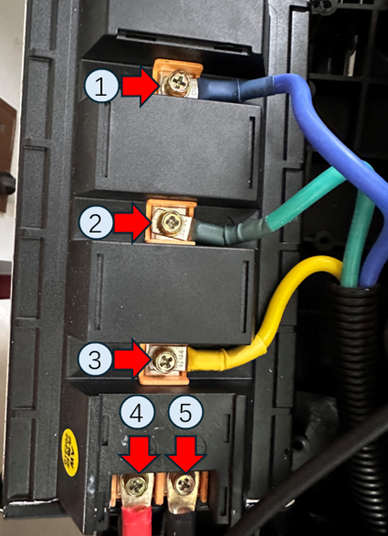

5. Removing the wire retaining screws

Remove 5 pcs of wire retaining screws

After removing the controller and replacing it with a new one, put it back in the above reverse order.

How to remove and replace 2000R controller
