Replace Display Control Panel on Velit 2000U Underbench Air Conditioner

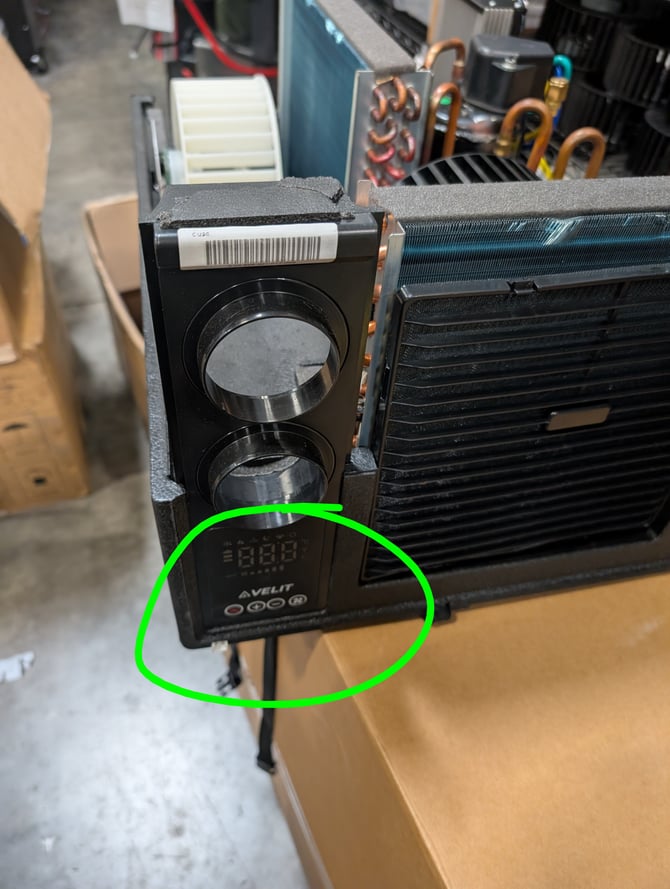

How to swap a new display panel in the 2000U underbench Air Conditioning unit.

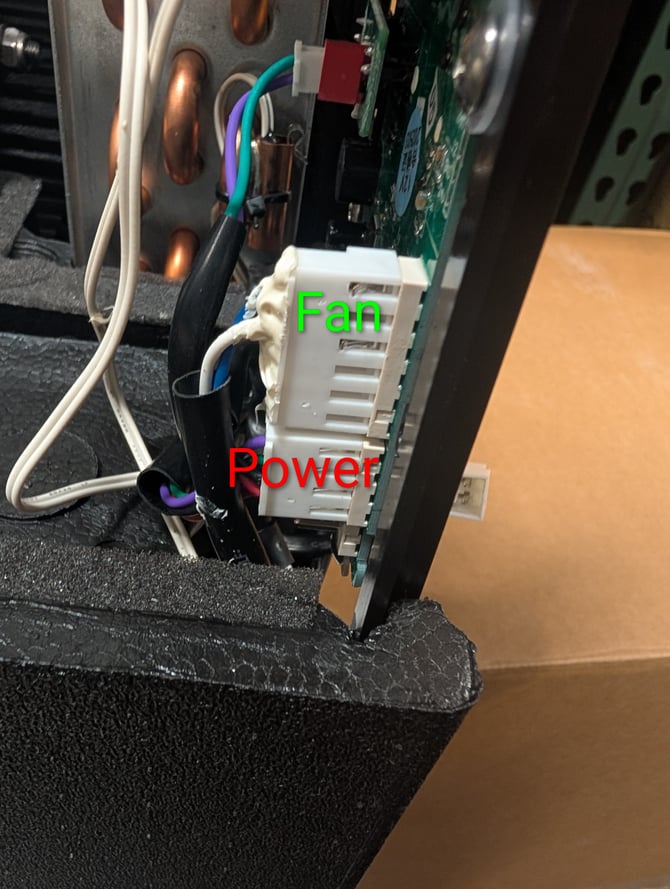

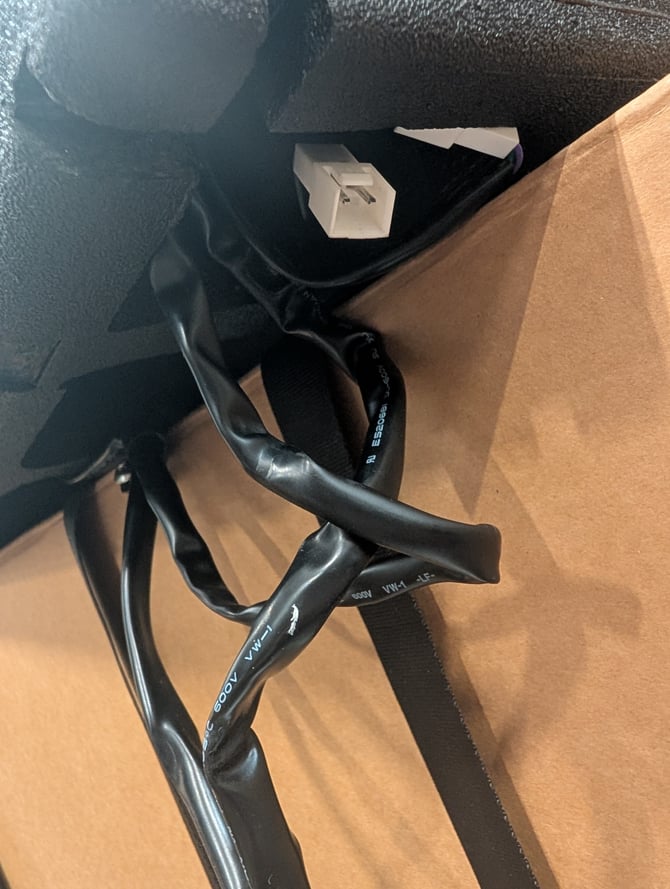

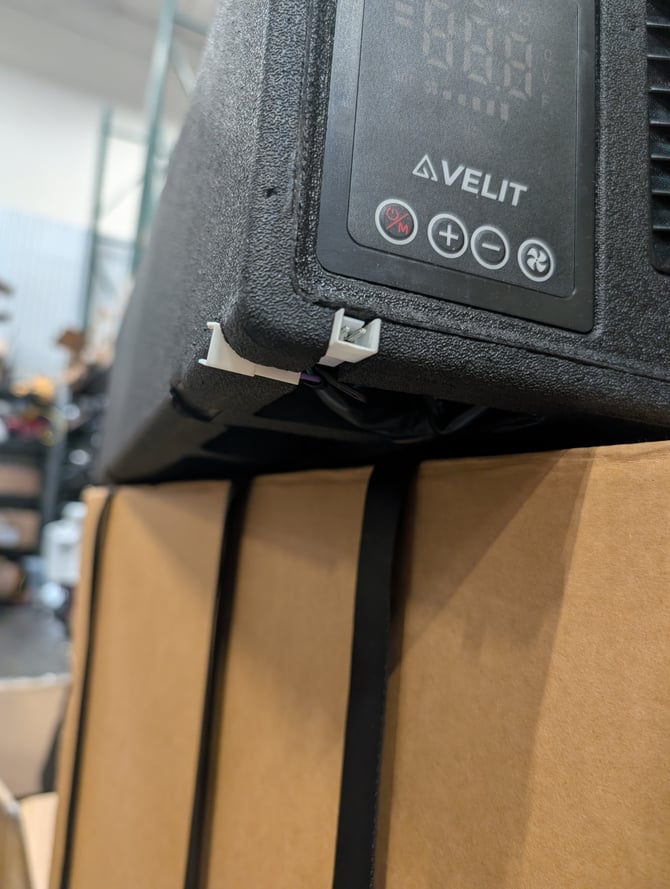

You'll need to remove the top shell, and looking from below, loosen the wires/cut zip ties leading to the front display. Pull up on the display enough to access the connectors labeled "Fan" and "Power", verify those are connected tightly and then put it all back together before testing the unit.

1785194339447

1785194349516

1785194356702



1785194363903
