# 2000U External Control Panel Wiring Instruction

## How to wire your external display panel

![1786137364125](https://help.velitcamping.com/hs-fs/hubfs/1786137364125.jpg?width=409&height=375&name=1786137364125.jpg)

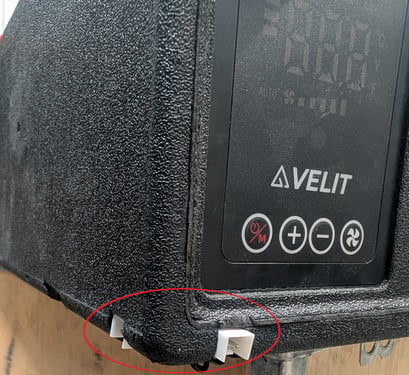

Find the extension connector under the front face of the unit

![1786137378660](https://help.velitcamping.com/hs-fs/hubfs/1786137378660.jpg?width=424&height=560&name=1786137378660.jpg)

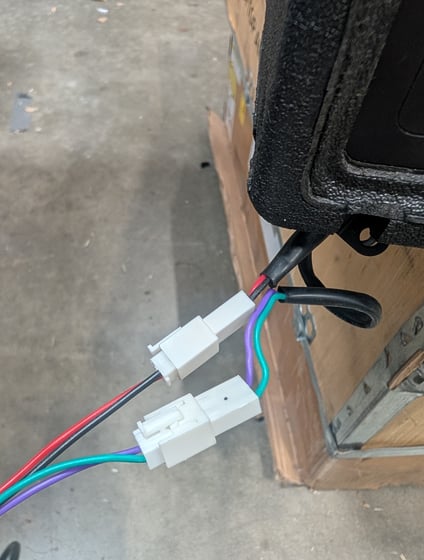

Connect the external control harness (matching the like colors)

![1786137811359](https://help.velitcamping.com/hs-fs/hubfs/1786137811359.jpg?width=418&height=498&name=1786137811359.jpg)

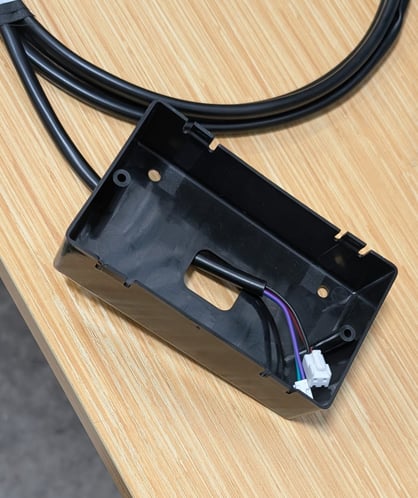

Bring the other end through the back of the control panel housing.

![1786138743782](https://help.velitcamping.com/hs-fs/hubfs/1786138743782.jpg?width=423&height=365&name=1786138743782.jpg)

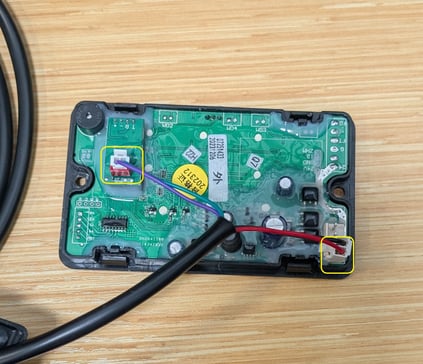

Connect wires as shown (purple/green goes to the red connector, red/black goes to the two pins closest to the bottom edge on the 4-pin connector)

![1786138432489](https://help.velitcamping.com/hs-fs/hubfs/1786138432489.jpg?width=320&height=377&name=1786138432489.jpg)![1786138440448](https://help.velitcamping.com/hs-fs/hubfs/1786138440448.jpg?width=299&height=376&name=1786138440448.jpg)

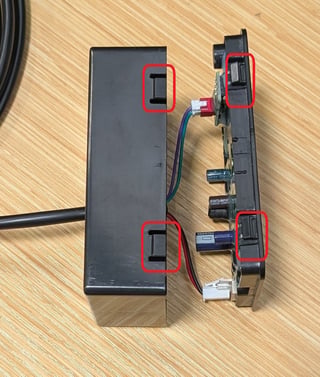

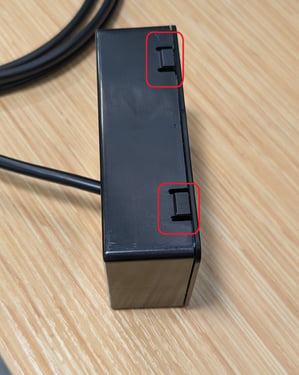

Clip the control panel into the housing, the four clips will snap into place
