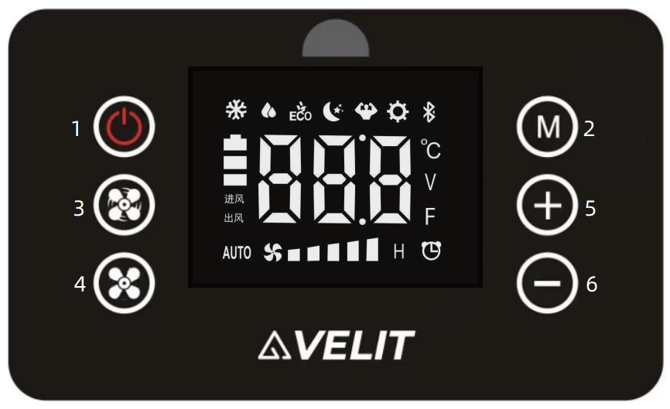

Operating modes: System output is controlled with (from lowest to highest power): Sleep (Moon and Stars), Eco (Eco), Cooling (Snowflake), Turbo (Bodybuilder) modes. (The water drop and sun indicators do not apply to these models.) As well as fan speed and temperature controls.
1. Power: Short press to turn on unit. Long press 2s to turn off. Short press to turn off/on display while the unit is running.
2. Mode: The "M" button only changes compressor speed, higher speed for higher ambient heat. Pressing the button will light up the indicators above. If none are lit up and you still feel air, you are in FAN ONLY Mode. Fan Only Mode, only circulates interior air and does not exhaust air or bring in fresh air.
Fan speed is adjusted using the Fan buttons. This is how to control how much air you feel. 3. Fan Speed (+): Increase fan speed 4. Fan Speed (-): Decrease fan speed. "Auto" fan speed: the system will balance Fan speed with the Compressor speed, and can also improve efficiency.
Temperature: the system will turn on when the indoor ambient temp is about 6-10 degrees F warmer than what is set, and it will turn off within 2 degrees of the Set temperature. (This is to prevent short, inefficient cycles.) The temperature is measured by an air-temp sensor behind the return air screen, it will be different then on the other side of your space for example. 5.Temperature (+): Increase setting temperature 6. Temperature (-): Decrease setting temperature
